Production of Electrical Panels
Production of Electrical Panels
Custom-designed and factory-assembled LV distribution boards, MCCs, and control panels built to international standards.
Product Overview
Enginmac Technologies Limited designs, fabricates, and assembles high-quality low-voltage electrical panels at our Spintex-Accra facility. From main distribution boards to motor control centers and automation panels, every unit is built using premium components (Schneider, ABB, Siemens) and tested to IEC 61439 standards.
All panels feature heavy-gauge galvanized steel enclosures with durable powder coating, IP54–IP66 protection, and full documentation including single-line diagrams and test certificates.
Key Features
- Fully type-tested design compliant with IEC 61439-1/2
- Modular construction for easy maintenance & expansion
- Premium brands: Schneider Electric, ABB, Siemens, Eaton
- IP54 to IP66 protection rating
- Hot-dip galvanized or powder-coated steel enclosure
- Complete factory wiring, testing & certification
- Single-line diagram, layout drawing & test report included
- Custom sizes and configurations available
Panel Types We Manufacture
| Panel Type | Typical Application |
|---|---|
| Main Distribution Board (MDB) | Commercial buildings, factories |
| Sub-Main Distribution Board (SMDB) | Floors, zones, apartments |
| Motor Control Centre (MCC) | Industrial plants, pumping stations |
| Automatic Transfer Switch (ATS) Panel | Generator backup systems |
| Capacitor Bank Panel | Power factor correction |
| PLC & Automation Control Panel | Process automation |
| Synchronizing Panel | Multiple generator sets |
| Feeder Pillar | Outdoor street lighting & distribution |
Technical Capabilities
- Rated voltage: 230/400V, up to 690V
- Rated current: up to 6300A
- Short-circuit withstand: up to 100kA / 1sec
- Form of separation: Form 2 to Form 4
- Busbar: Copper (standard), Aluminium (optional)
- Protection class: IP54 (indoor), IP65/66 (outdoor)

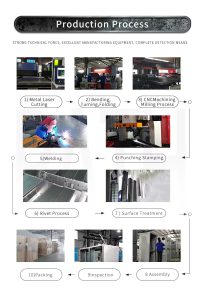

Production & Testing Process
- Design approval with client (SLD & GA drawings)
- CNC cutting & bending of galvanized steel enclosure
- Electrostatic powder coating (RAL 7035 standard)
- Component mounting & internal wiring
- 100% continuity & insulation resistance testing
- High-voltage & functional testing
- Final inspection with client witness (optional)
- Packaging & delivery with full documentation

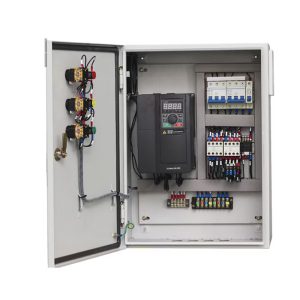

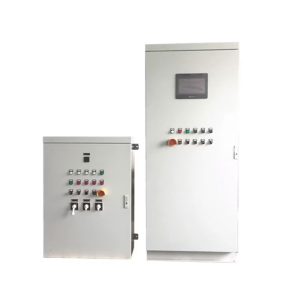

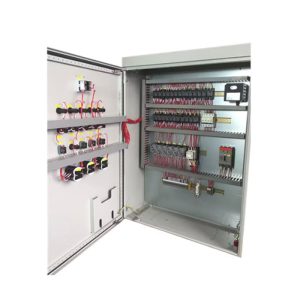

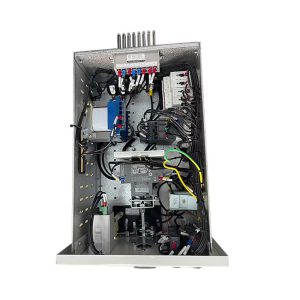

Product Gallery
Applications
Commercial buildings • Hotels & hospitals • Industrial factories • Data centers • Residential complexes • Solar & renewable energy plants • Water treatment facilities • Infrastructure projects
